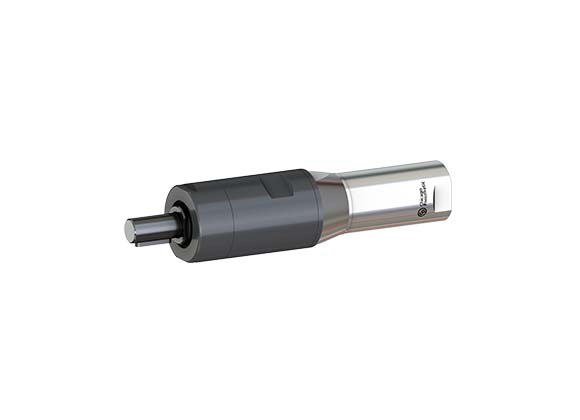

Chicago Pneumatic MR84-230-K-ATEX Air Motor

Name: Chicago Pneumatic MR84-230-K-ATEX Air Motor
Brand: Chicago Pneumatic
SKU: 2051479314

SKU: 2051479314

£2,758.34

£1,806.71

Chicago Pneumatic MR84-230-K-ATEX Air Motor. 630 W Reversible vane air motor, 230 rpm free speed, ATEX certified. Packaging

Dimensions: 38 x 22 x 10 cm, Weight: 3.22 kg.

Quantity

The standard pneumatic vane motors MR84-230-K-ATEX are compact in design, light in weight, and have a keyed shaft spindle. It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 630 W (0.8 hp), with a maximum torque of 91 Nm (67 ft.lbs) and 230 rpm free speed, and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85°C Db for dust. Country of origin is HU. Customs tariff is 84123900.
Low friction and lubrication-free design of vanes for ruggedness.

Sustain stall torque loading indefinitely.

Short and compact planetary gear system for versatile solutions

Long lasting efficiency with low air consumption design

Strong starting torque for mobility during operation
Air information

Air consumption at load - 14 l/s

Air flow max power - 14 l/s

Air inlet thread size (in) - 3/8

Air inlet thread type - BSP

Max dynamic air working pressure - 6.3 bar

Safety

Index of protection (IP code) - IP66

Speed

Max free speed range - 230 rpm

Torque

Minimum starting torque - 61 Nm

Stall torque - 91 Nm

Torque at max power - 46 Nm

Power & Battery

Max output power - 0.6 kW

Design & Functions

Back Head Coaxial - No

Front nut threaded - No

Main Material type - Steel

Motor Lubrication free - No

Rotation drive - Reversible

Shaft loading code - g

Spindle type - Keyed shaft

Starting system - None

Size & Weight

Output Spindle size - 10 mm

Weight - 2.7 kg
