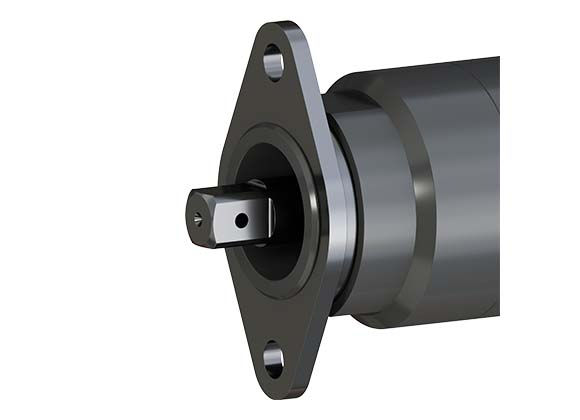

Chicago Pneumatic M3901-70-SQ Air Motor

Name: Chicago Pneumatic M3901-70-SQ Air Motor
Brand: Chicago Pneumatic
SKU: 2051481604

SKU: 2051481604

£2,633.71

£1,725.08

Chicago Pneumatic M3901-70-SQ Air Motor. 390 W non-reversible vane air motor, 70 rpm free speed, ATEX certified

Quantity

The standard pneumatic vane motors M3901-70-SQ is compact in design, light in weight, have Square shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.5 hp), with a maximum torque of 220 Nm (162 ft.lbs) and 70 rpm free speedCountry of origin is HU. Customs tariff is 84123900
Low-friction and lubrication-free design of vanes for ruggedness.

Sustain stall torque loading indefinitely.

Short and compact planetary gear system for versatile solutions

Long lasting efficiency with low air consumption design

Strong starting torque for mobility during operation
Size & Weight

Output Spindle size - 12.7 mm

Weight - 2.6 kg

Torque

Minimum starting torque - 200 Nm

Stall torque - 220 Nm

Torque at max power - 110 Nm

Design & Functions

Back Head Coaxial - Yes

Front nut threaded - Yes

Main Material type - Steel

Rotation drive - Clockwise

Shaft loading code - c

Spindle type - Square

Starting system - None

Power & Battery

Max output power - 0.4 kW

Speed

Max free speed range - 70 rpm

Safety

Index of protection (IP code) - IP66

Air information

Air consumption at load - 8.1 l/s

Air flow max power - 8.1 l/s

Air inlet thread size (in) - 1/4

Air inlet thread type - BSP

Max dynamic air working pressure - 6.3 bar
