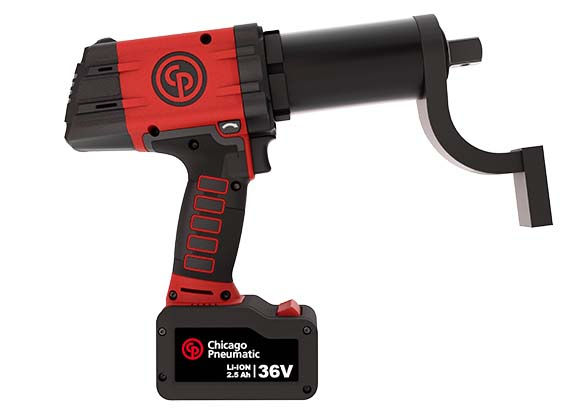

Chicago Pneumatic CP8613 3/4" Battery Torque Wrench

Torque tightening from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. Pack includes 1 S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more. The country of origin is HU. Customs tariff is 84672920.

• High precision with +/- 4%
• Safe tightening with second start button as standard
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Battery information

Battery capacity - 2.5 Ah

Battery type - Lithium-ion

Battery voltage - 36 V

Max Ambient Operating Temperature - 60 °C

Max Recommended Ambient Charging Temperature - 45 °C

Min Ambient Operating Temperature - 0 °C

Min Recommended Ambient Charging Temperature - 0 °C

Noise & vibrations

Sound Power (dba) - <72

Sound Pressure - 83 dB(A)

Vibration (m/s²) - <2.5

Storage

Max Ambient Storage Temperature - 60 °C

Min Ambient Storage Temperature - -20 °C

Size & Weight

Battery Weight - 0.8 kg

Height (H) - 285 mm

Length (L) -318 mm

Width (W) - 77 mm

Power-to-weight ratio - 350 Nm/kg

Weight - 3.7 kg

Weight without reaction arm - 3.7 kg

Weight with reaction arm - 4.5 kg

Speed

Free Speed - 10 rpm

Torque

6s Torque scatter % - ±4 %

Max torque in forward - 1300 Nm

Max torque in reverse - 1300 Nm

Min torque in forward - 300 Nm

Recommended Torque - 1040 Nm

Torque Control System - Shut-off-current control

Design & Functions

Adjustment - Digital

Handle type - Pistol

Joint Type - Hard & Soft

Main Material type - Steel

Output drive size (in) - 3/4

Output drive type - Sq

Output retainer type - Hole

Reaction bar type - S-type included

Reversible - Yes

Spline type - 0

Starting system - Double-trigger

Suspension option - Optional
