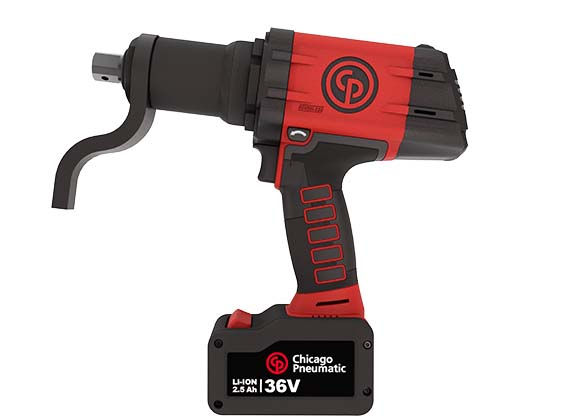

Torque tightening from 70 Nm / 50 ft.lb to 325 Nm / 240 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via the CPLinQ app. Pack includes 1 S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more. The Country of origin is HU. Customs tariff is 84672920.
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
Battery information
Battery capacity - 2.5 Ah
Battery type - Lithium-ion
Battery voltage - 36 V
Max Ambient Operating Temperature - 60 °C
Max Recommended Ambient Charging Temperature - 45 °C
Min Ambient Operating Temperature - 0 °C
Min Recommended Ambient Charging Temperature - 0 °C
Noise & vibrations
Sound Power (dba) - <72
Vibration (m/s²) - <2.5
Storage
Max Ambient Storage Temperature - 60 °C
Min Ambient Storage Temperature - -20 °C
Size & Weight
Battery Weight - 0.8 kg
Height (H) - 285 mm
Length (L) - 363 mm
Width (W) - 77 mm
Power-to-weight ratio - 110 Nm/kg
Weight - 2.9 kg
Weight without reaction arm - 2.9 kg
Weight with reaction arm - 3.3 kg
Speed
Free Speed - 20 rpm
Torque
6s Torque scatter % - ±4 %
Max torque in forward - 325 Nm
Max torque reverse - 325 Nm
Min torque in forward - 70 Nm
Recommended Torque - 260 Nm
Torque Control System - Shut-off-current control
Design & Functions
Adjustment - Digital
Handle type - Pistol
Joint Type - Hard & Soft
Main Material type - Steel
Output drive size (in) - 3/4
Output drive type - Sq
Output retainer type - Hole
Reaction bar type - S-type
Reversible - Yes
Spline type - 0
Starting system - Double-trigger
Suspension option - Optional
- 84672920
- HU
