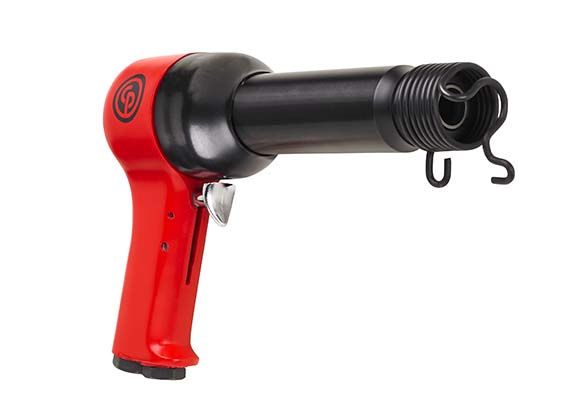

Take advantage of the CP rivet hammers solution covering the most frequent riveting application in metal structures for aerospace. The CP42 rivet hammer series is defined by 7 models (1X,2X,3X,4X,5X,7X,9X) . Country of origin is TW. Customs tariff is 84671900.
- A simple range for multiple aerospace application
- From 1X up to 9X rivet hammer type to cover a majority of aluminum and steel rivet size
- 7 models to cover all frequently used rivets in metal structure repair for Aerospace
- Very good durability for aerospace MRO.
Speed
Air consumption at free speed (Normo) - 12.3 1/sNl
Air consumption at free speed - 2.8 l/s
Air information
Air inlet thread size (in) - 1/4
Air inlet thread type - NPT
Max dynamic air working pressure - 6.3 bar
Min hose diam (16 ft hose length) - 0.38 in
Min hose diam (5 m hose length) - 9.5 mm
Noise & vibrations
Sound Power - 113 dB(A)
Sound Pressure - 102 dB(A)
Uncertainty vibration-K - 4.5 m/s²
Vibration - 24.7 m/s²
Size & Weight
Bore diameter - 19 mm
Height (H) - 160.3 mm
Length (L) - 230 mm
Width (W) - 63.5 mm
Stroke - 68 mm
Weight - 2.1 kg
Design & Functions
Blow per minute - 1600
Chisel shank diameter (in) - 0.498
Chisel shank diameter (mm) - 12.7
Energy - 9 J
Main Material type - Aluminium, Steel
Max rivet size aluminium (in) - 1/4
Max rivet size aluminium (mm) -6.4
Max rivet size steel (in) - 3/16
Max rivet size steel (mm) - 4.8
Rivet hammer type - 5X
Starting system - Trigger
- 84671900
- TW
