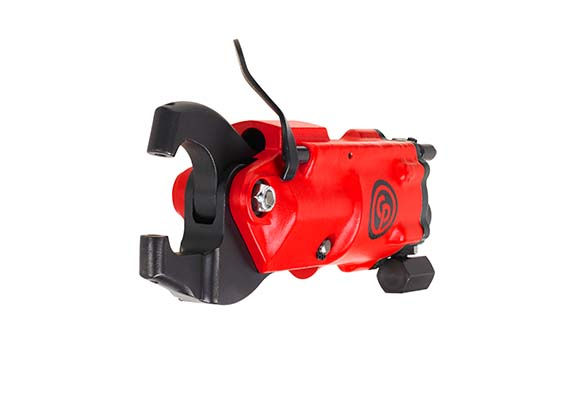

The CP42 series includes six models of squeezers which covers the most frequently used rivets in metal structure repair for aerospace, and their functional design is truly first class. You have a choice between C-jaws and Alligator jaws to best fit your application and to give optimal access.Country of origin is TW. Customs tariff is 84671900.
- Extremely good ergonomics – silent and vibrationless
- The different jaws make it possible to use for any rivets within 76 mm from an edge
- 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace
- Very good durability for aerospace MRO.
Size & Weight
Height (H) - 92 mm
Length (L) - 233 mm
Moving plunger max. travel - 15.9 mm
Weight - 1.7 kg
Design & Functions
Jaw type - Aligator short
Main Material type - Aluminium
Max compression force (90psi/6.2bar) - 13.3 kN
Max rivet size aluminium (in) - 1/8
Max rivet size aluminium (mm) - 3.2
Max rivet size steel (in) - 3/32
Max rivet size steel (mm) - 2.4
Starting system - Safety lever
Noise & vibrations
Sound Power - 87 dB(A)
Sound Pressure - 76 dB(A)
Uncertainty vibration-K - 2.7 m/s²
Vibration (m/s²) - <2.5 m/s**2
Air information
Air inlet thread size (in) - 1/4
Air inlet thread type - NPT
Max dynamic air working pressure - 6.3 bar
Min hose diam (16 ft hose length) - 0.38 in
Min hose diam (5 m hose length) - 9.5 mm
- 84671900
- TW
